Bar Chart widget

Using the Bar Chart widget, data can be displayed as a bar. The bars are based on coordinates for the x-axis and y-axis. A bar chart mostly represents a combination of time (x-axis) and another signal (e.g. pressure for y-axis).

Example

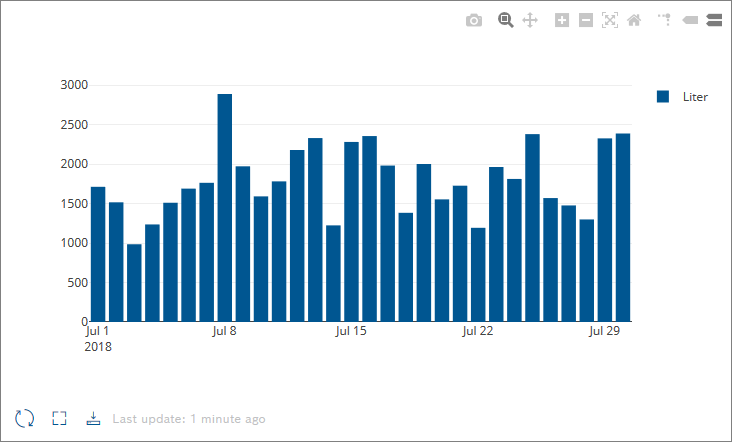

images/confluence/download/attachments/1083888413/widget_bar_chart_example_2020_09_14.png

Proceed as follows

  1. Select the Bar Chart widget in the widget list.
    → The widget configuration page is displayed.

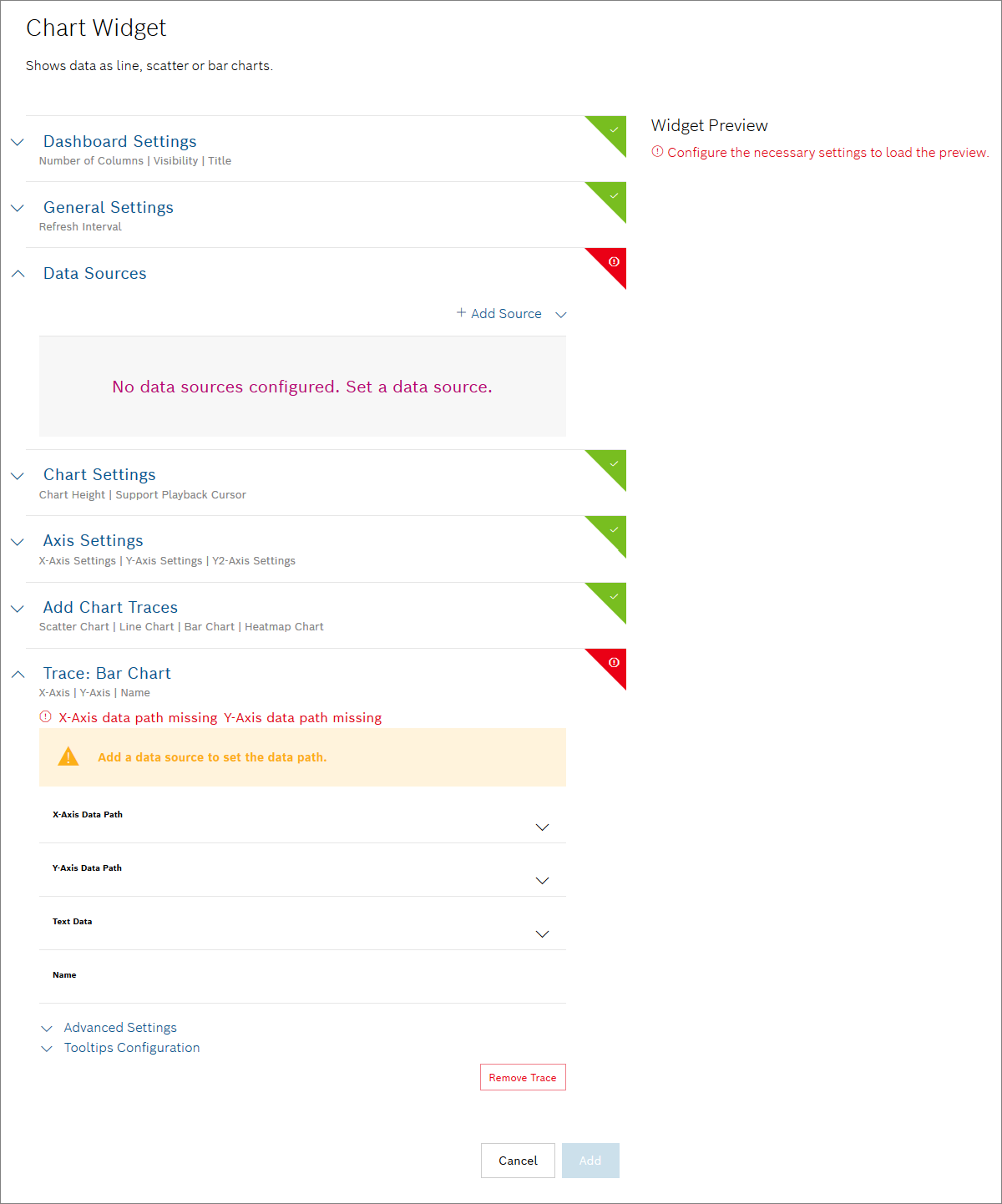

    images/confluence/download/attachments/1083888413/widget_bar_chart_configuration_2020_09_14.png
  2. Configure the settings as described below.

  3. Click the Add button.
    → The widget is added to the dashboard.

To create this widget, the following settings are mandatory to be configured:

  • Data Source

  • X-Axis Data Path

  • Y-Axis Data Path

All other settings are optional.

Dashboard Settings

Open the Dashboard Settings pane to set how the widget is displayed in the dashboard.

  1. In the Size drop-down list, decide how much space the widget should take in the form of columns.

  2. In the Visibility drop-down list, decide whether the widget should be shown or hidden in the dashboard.

  3. In the Title field, enter a title for the widget.

General Settings

Open the General Settings pane to configure some general aspects for the widget.

  1. In the Widget Refresh Interval in Seconds field, enter a value in seconds after which the widget should be refreshed.

Tree widget

Data Sources

Open the Data Sources pane to configure the data source for the widget.

You can select a maximum of three data sources.

  1. Click the + Add Source button to add a data source.

  2. Select any of the following options further explained underneath:

Query Template

  1. In the Query Template drop-down list, select a query template that you configured under Explore > Data Explorer, refer to Creating a query template.

    A query template is a template that has been created, parameterized, and provided for others. It is similar to an SQL View and shows data in a table view.

    To connect the widget with the Filter Panel widget you created for this dashboard, click the Available references icon images/confluence/download/thumbnails/1083888325/icon_reference.png and select the Filter Panel.

    If you have a time parameter, you can choose between absolute time, relative time, and a preset by clicking the time icon images/confluence/download/thumbnails/1083888325/icon_absolute_relative_time.png .

  2. Click the Source data preview icon images/confluence/download/thumbnails/1083888325/icon_widget_refresh.png to open a preview.

  3. Click the Save Data Source button.

Single Device

  1. In the Default Device ID drop-down list, select a Device ID.

    To connect the widget with the Filter Panel widget you created for this dashboard, click the Available references icon images/confluence/download/thumbnails/1083888325/icon_reference.png and select the Filter Panel.

  2. Click the Source data preview icon images/confluence/download/thumbnails/1083888325/icon_widget_refresh.png to open a preview.

  3. Click the Update Source button.

Multiple Devices

  1. In the Select Device Types drop-down list, select a device type.

  2. Click the Advanced Settings button to narrow down the output.

  3. In the Start field, enter a value to specify the device to start with.

    Example: If you select 3, the first two devices are skipped.

  4. In the Limit field, enter a value to specify the last device.

    The maximum is 200 devices.

  5. In the Fields field, enter the fields whose information shall be retrieved from Bosch IoT Things.

  6. In the Sort field, enter a field configured in Bosch IoT Things according to which the data shall be sorted.

  7. In the Namespaces field, add namespaces separated by a comma.

  8. In the Filter field, add a filter to narrow down the search results. Placeholders are also supported.

  9. Click the Source data preview icon images/confluence/download/thumbnails/1083888325/icon_widget_refresh.png to open a preview.

  10. Click the Update Source button.

Device Count

The Device Count data source is based on the counting functionality in Bosch IoT Things and is used to count things.

  1. In the Select Device Type drop-down list, select the device types/devices to be used as data source.

    • All Devices: Counts all devices regardless of the fact that they have a device type or not

    • All Device Types: Counts the devices that have the thing attribute type which means that the device belongs to a device type

    • Without Device Type: Counts the devices without the thing attribute type

    • Device Type xy: Counts the devices of the selected device types

  2. Click the Advanced Settings button to narrow down the output.

  3. In the Namespaces field, add namespaces separated by a comma.

  4. In the DefaultFilter field, add a filter to narrow down the search results.

    To connect the widget with the Filter Panel widget you created for this dashboard, click the Available references icon images/confluence/download/thumbnails/1083888325/icon_reference.png and select the Filter Panel.

  5. Click the Source data preview icon images/confluence/download/thumbnails/1083888325/icon_widget_refresh.png to open a preview.

  6. Click the Update Source button.

Devices from Filter Selection

Devices will be loaded that match the Device filter type configured in the Filter Panel widget.

  1. In the Pagination Limit field, enter a limit of devices that shall be displayed per page.

  2. In the Sort field, enter a property according to which the devices shall be sorted.

  3. Click the Source data preview icon images/confluence/download/thumbnails/1083888325/icon_widget_refresh.png to open a preview.

  4. Click the Update Source button.

Playback: All Frames

The Playback widget must have been configured for your dashboard.

  1. Select Playback: All Frames to display all data that has been recorded.

Playback: Current Frame

The Playback widget must have been configured for your dashboard.

  1. Select Playback: Current Frame to display the data that is just being recorded.

External Data Source

Using the external data source, an external endpoint can be specified to reference data.

  1. Select an HTTP method.

  2. In the Request URL field, enter the URL of the request.

  3. If you selected the GET HTTP method:

    1. In the Headers pane, enter a key and a value to specify the header information of the external system.

    2. Activate the Secret Header checkbox to flag the header as secret.

      When editing the data source, the header information has to be provided.

    3. In the Test Parameters pane, enter a filter parameter to test it.

      This pane can be used if a filter widget is configured for the dashboard. The filter values can be referenced as described in this pane within the URL and Headers.

      Modifiers can be used to manipulate referenced filter values. The following modifiers are available:

      • noencode: Only used in URLs. The value is not encoded as it is done by default.

      • join: Concatenates multiple values in one string separating them with the provided separator.

      • queryParams: Creates an entry with the provided parameterName for each value.

      Usage examples:

      Example filter context:

      {

      "multi": ["v1", "v2"]

      }

      join:

      ${filterParams.multi | join: ','} will result in v1,v2

      queryParams:

      ${filterParams.multi | queryParams: 'multiParam'} will result in multiParam=v1&multiParam=v2

      Independently from the test parameters, user-specific information can be referenced.

  4. If you selected the PUT HTTP method:

    1. In the Body pane, select the type of data in the Type drop-down list.

    2. Activate the Secret Header checkbox to flag the header as secret.

      When editing the data source, the header information has to be provided.

    3. In the Test Parameters pane, enter a filter parameter to test it.

      This pane can be used if a filter widget is configured for the dashboard. The filter values can be referenced as described in this pane within the URL, Headers and the Body.

      Modifiers can be used to manipulate referenced filter values. The following modifiers are available:

      • noencode: Only used in URLs. The value is not encoded as it is done by default.

      • join: Concatenates multiple values in one string separating them with the provided separator.

      • queryParams: Creates an entry with the provided parameterName for each value.

      Usage examples:

      Example filter context:

      {

      "multi": ["v1", "v2"]

      }

      join:

      ${filterParams.multi | join: ','} will result in v1,v2

      queryParams:

      ${filterParams.multi | queryParams: 'multiParam'} will result in multiParam=v1&multiParam=v2

      Independently from the test parameters, user-specific information can be referenced.

  5. If you selected the POST HTTP method:

    1. In the Body pane, select the type of data in the Type drop-down list.

    2. Activate the Secret Header checkbox to flag the header as secret.

      When editing the data source, the header information has to be provided.

    3. In the Test Parameters pane, enter a filter parameter to test it.

      This pane can be used if a filter widget is configured for the dashboard. The filter values can be referenced as described in this pane within the URL, Headers and the Body.

      Modifiers can be used to manipulate referenced filter values. The following modifiers are available:

      • noencode: Only used in URLs. The value is not encoded as it is done by default.

      • join: Concatenate multiple values in one string separating them with the provided separator.

      • queryParams: Creates an entry with the provided parameterName for each value.

      Usage examples:

      Example filter context:

      {

      "multi": ["v1", "v2"]

      }

      join:

      ${filterParams.multi | join: ','} will result in v1,v2

      queryParams:

      ${filterParams.multi | queryParams: 'multiParam'} will result in multiParam=v1&multiParam=v2

      Independently from the test parameters, user-specific information can be referenced.

  6. Click the Source data preview icon images/confluence/download/thumbnails/1083888325/icon_widget_refresh.png to open a preview.

  7. Click the Save Data Source button.

Chart Settings

Open the Chart Settings pane to define layout of the chart.

  1. In the Chart Height field, enter a value for the height of the chart.

  2. In the Zoom Mode drop-down-list, select which axis can be zoomed.

  3. Activate the Support Playback Cursor checkbox to load the data from the Playback widget that you configured before.

  4. Click the Advanced Settings drop-down menu to further configure the chart widget.

    1. In the Chart Margin Left field, enter a value to define the margin for the left side.

    2. In the Chart Margin Right field, enter a value to define the margin for the right side.

    3. In the Chart Margin Top field, enter a value to define the margin for the top.

    4. In the Chart Margin Bottom field, enter a value to define the margin for the bottom.

Bar Chart Settings

    1. In the Bar Mode drop-down list, decide how multiple bars shall be displayed (e.g. stacked) in one chart.

      This only applies if the group/stack by path is given or if to two or more bar chart traces are configured in one coordinate system.

    2. In the Bar Normalization drop-down list, select a normalization type.

Axis Settings

Open the Axis Settings pane to define the axes of your chart.

  1. Open the X-Axis Settings pane to define the x-axis.

    1. In the X-Axis Title field, enter a title for the x-axis.

    2. Deactivate the X-Axis visible checkbox to hide the x-axis.

    3. In the X-Axis Type drop-down list, select the type of value to be displayed in the x-axis.

      • Auto: The x-axis type is set automatically. This is the default setting.

      • Linear: Sets normal values as x-axis.

      • Logarithmic: Sets values as x-axis in a logarithmic arrangement.

      • Date Time: Sets the timestamp as x-axis.

      • Category: Adds a superordinate group to the values.

      • Multicategory: Adds superordinate groups to the values.

    4. In the X-Axis Tick Prefix field, enter a prefix that precedes each x-axis value, e.g. Temp.

    5. In the X-Axis Tick Suffix field, enter a suffix that succeeds each x-axis value, e.g. °C.

    6. In the X-Axis Tick Format drop-down list, select the format of the value that are displayed in the x-axis.

    7. In the X-Axis Range Mode drop-down list, select the range in which the values shall be displayed.

  2. Open the Y-Axis Settings pane to define the y-axis.

    1. In the Y-Axis Title field, enter a title for the y-axis.

    2. Deactivate the Y-Axis visible checkbox to hide the y-axis.

    3. In the Y-Axis Type drop-down list, select the type of value to be displayed in the y-axis.

      • Auto: The y-axis type is set automatically. This is the default setting.

      • Linear: Sets normal values as y-axis.

      • Logarithmic: Sets values as y-axis in a logarithmic arrangement.

      • Date Time: Sets the timestamp as y-axis.

      • Category: Adds a superordinate group to the values.

      • Multicategory: Adds superordinate groups to the values.

    4. In the Y-Axis Tick Prefix field, enter a prefix that precedes each y-axis value.

    5. In the Y-Axis Tick Suffix field, enter a suffix that succeeds each y-axis value.

    6. In the Y-Axis Tick Format drop-down list, select the format of the value that are displayed in the y-axis.

    7. In the Y-Axis Range Mode drop-down list, select the range in which the values shall be displayed.

  3. Open the Y2-Axis Settings pane to define the y2-axis.

    1. In the Y2-Axis Title field, enter a title for the y2-axis.

    2. Deactivate the Y2-Axis visible checkbox to hide the y2-axis.

    3. In the Y2-Axis Type drop-down list, select the type of value to be displayed in the y2-axis.

      • Auto: The y2-axis type is set automatically. This is the default setting.

      • Linear: Sets normal values as y2-axis.

      • Logarithmic: Sets values as y2-axis in a logarithmic arrangement.

      • Date Time: Sets the timestamp as y2-axis.

      • Category: Adds a superordinate group to the values.

      • Multicategory: Adds superordinate groups to the values.

    4. In the Y2-Axis Tick Prefix field, enter a prefix that precedes each y2-axis value.

    5. In the Y2-Axis Tick Suffix field, enter a suffix that succeeds each y2-axis value.

    6. In the Y2-Axis Tick Format drop-down list, select the format of the value that are displayed in the y2-axis.

    7. In the Y2-Axis Range Mode drop-down list, select the range in which the values shall be displayed.

Chart Traces

Open the Add Chart Traces pane to select one or multiple additional chart traces that can be added to the chart.

The following chart traces can be added:

  1. Click the button of any chart trace.
    → The chart trace is added and can be configured as described in the corresponding chapters.

To remove a chart trace, click the Remove Trace button at the bottom of the corresponding chart trace configuration.

Trace: Bar Chart

  1. In the X-Axis Data Path drop-down list, select a parameter for the x-axis.

  2. In the Y-Axis Data Path drop-down list, select a parameter for the y-axis.

  3. In the Group/stack by drop-down list, select a parameter with which the values will be grouped or stacked in the legend.

  4. In the Text Data drop-down list, select a parameter that shall be displayed as text in the bars.

  5. In the Name field, enter a name for the line that will be displayed in the legend.

    The parameter you selected in the Y-Axis Data field will be automatically added.

  6. Click the Advanced Settings drop-down menu to further configure the line.

    1. Deactivate the Show in Legend checkbox to hide the grouped values.

    2. In the Text Position drop-down list, select the position of the text selected in the Text Data drop-down list.

    3. In the Orientation drop-down list, select the direction of the bars.

    4. In the Opacity drop-down list, select a value to define the opacity of the bars.

    5. Click the color square to select another color for the line or enter a color code.

    6. Deactivate the Visible checkbox to hide the line.

    7. In the Y-Axis Assignment drop-down list, select the y-axis that shall be displayed.

  7. Click the Tooltips Configuration drop-down menu to configure tooltips. Tooltips are displayed in the order they were added to the table.

    1. In the Type drop-down list, select a type of the information that shall be displayed in the tooltip.

    2. Add a Label for the tooltip.

    3. Add a Value.

    4. Click the Add Tooltip Row button to add another row in the tooltip.

      To delete the column, click the Delete button.

      To reorder the columns, drag and drop the column using the Move icon images/confluence/download/thumbnails/1083888413/icon_move.png .
