Bosch IoT Insights

Basic Settings

In Basic Settings, you can define the project's label, contact information, the landing page, and upload a logo.

Proceed as follows

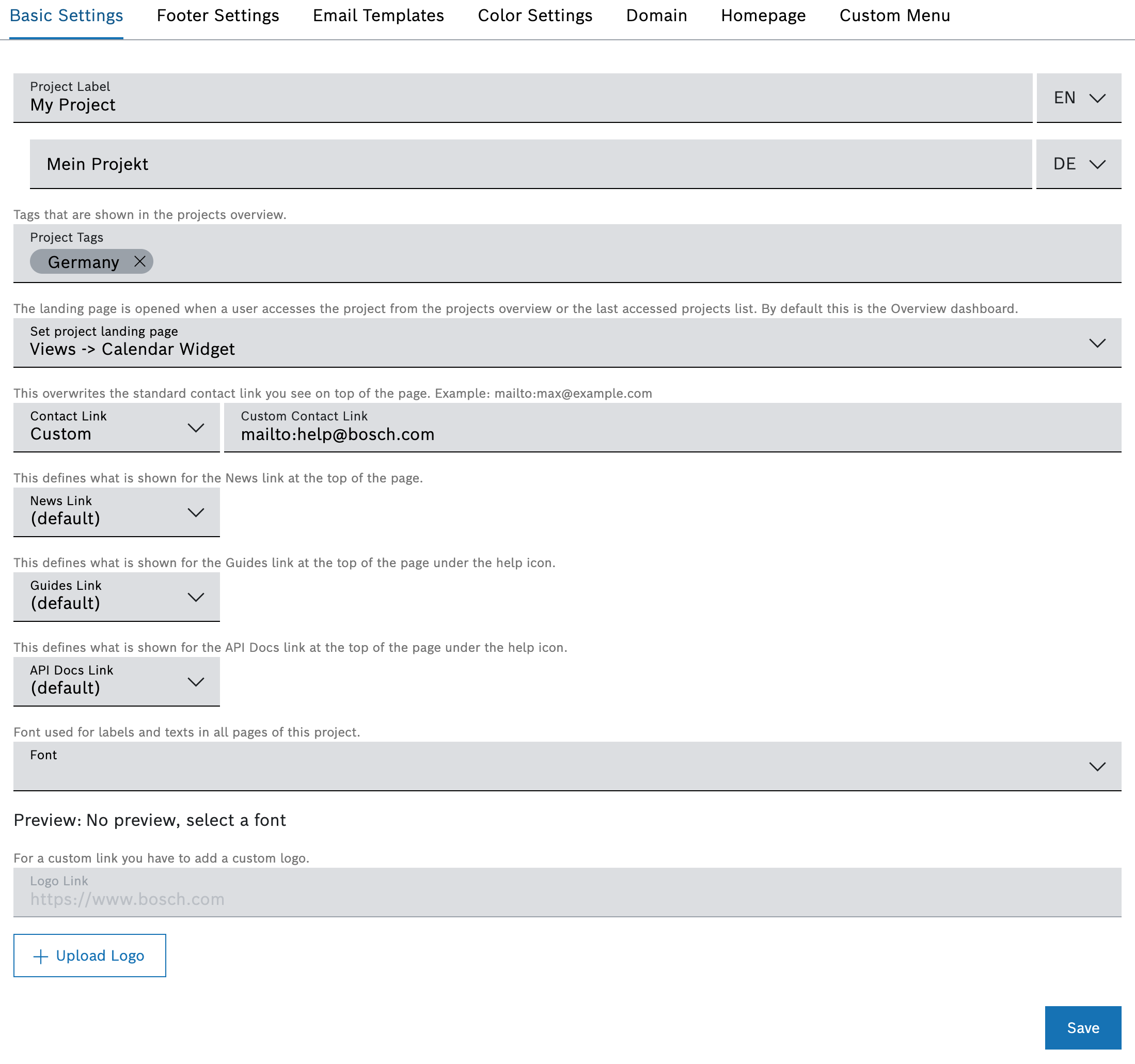

Click the Basic Settings tab.
→ The Basic Settings tab is displayed and shows the general project information.

images/confluence/download/attachments/1090510333/admin_whitelabeling_basic-settings_configure-version-1-modificationdate-1695901693000-api-v2.png

Prerequisite

You are assigned to the Manager role or higher.

Adjusting the basic information

Proceed as follows

  1. In the Label field, enter a name for your project.

  2. Click the EN drop-down list and select Add DE: German to add the German equivalent for the label.

  3. In the Contact Link field, enter a link that will be opened when users click the Contact button at the top.

  4. In the Set project landing page drop-down list, select a main menu item that will then always be displayed after you logged in.

  5. In the Font drop-down list, select the font for the text elements.

    Keep in mind that in case the user does not have the selected font installed, the browser will fall back to a font family that is available.


  6. In the Logo Link field, enter a link for the logo to navigate to a custom website via the logo.

  7. Click the Upload Logo button to change the logo displayed at the top left-hand side.

    1. Click inside the Upload Logo field and select an image.

      The recommended image size is 70px (H) and 100px (W).

      → The image is displayed.

    2. Click the Save button to save the image as logo.
      → The image has been saved as logo.

  8. Click the Save button to save the general project settings.
    → The basic information has been saved.
