Bosch IoT Insights

Link Panel widget

Using the Link Panel widget, automatically generated or manually defined links can be added to the dashboard. You can define as many links as you want.

Automatically generated links can point to:

  • Explore and Processing views, such as Data Explorer, Data Browser, Data Analyzer, Query History, Input History, and Processing Information

  • Views you have created

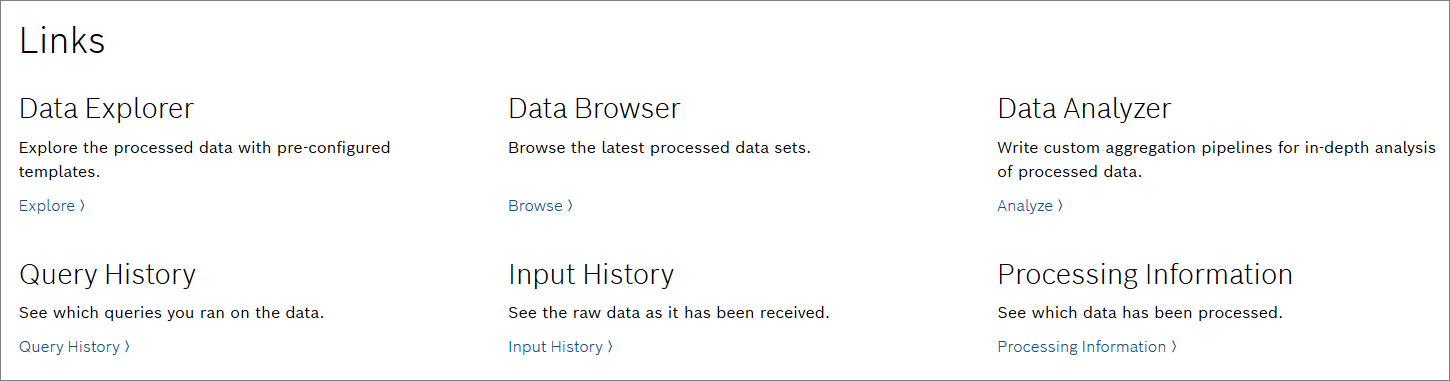

Example

images/confluence/download/attachments/1083888307/widget_link_panel_2020_07_23.png

Proceed as follows

  1. Select the Link Panel widget in the widget list.

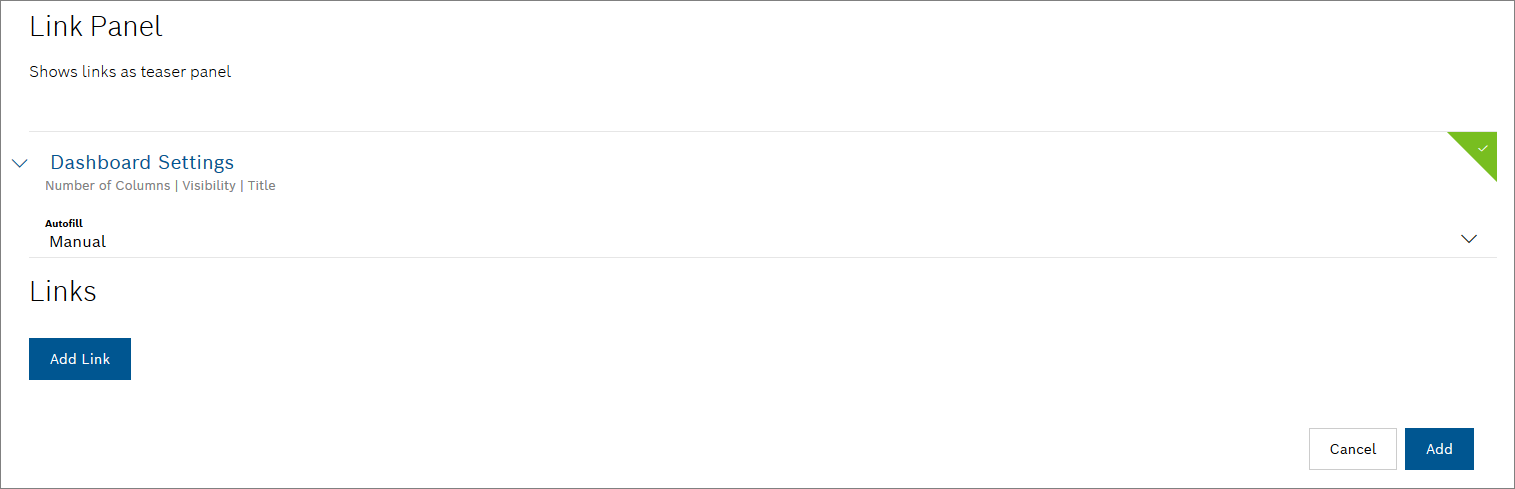

    → The widget configuration page is displayed.

    images/confluence/download/attachments/1083888307/widget_link_panel_configuration_2020_07_23.png
  2. Configure the settings as described below.

  3. Click the Add button.
    → The widget is added to the dashboard.

Dashboard Settings

Open the Dashboard Settings pane to set how the widget is displayed in the dashboard.

  1. In the Size drop-down list, decide how much space the widget should take in the form of columns.

  2. In the Visibility drop-down list, decide whether the widget should be shown or hidden in the dashboard.

  3. In the Title field, enter a title for the widget.

Link Settings

  1. In the Autofill drop-down list, select a link pattern.

    If you selected Fill with links to Explore and Processing views or Fill with links to Project views, skip the following settings and click the Add button.

  2. In the Links pane, click the Add link button to add a manual link.

    1. Enter a Label to specify the heading for the link.

    2. Click the EN drop-down list and select Add DE: German to add the German equivalent for the label.

    3. Enter a Description.

    4. Click the EN drop-down list and select Add DE: German to add the German equivalent for the description.

    5. Enter a Link Label to specify the display name of the link.

    6. Click the EN drop-down list and select Add DE: German to add the German equivalent for the link label.

    7. In the URL field, enter a URL to add a location or website.

      For external links, start the URL with http:// or https://.

To remove a link, click the Remove icon images/confluence/download/thumbnails/1083888307/icon_remove.png .
